Conserving the William Redver Stark sketchbooks: dates and locations

Posted on by
Reply

In this last article on page mapping, we are looking at the dates and locations of Stark‘s sojourn in Europe, matching the ones inscribed in his sketchbooks to the events and locations of his military unit.

In many of his sketchbooks, Stark wrote the name of the town or village that he was sketching. Occasionally, he would also include the date. These notations give the modern viewer a real sense of the time Stark spent in France and Belgium, and were a great help in the re-sequencing of the detached leaves.

We were able to verify dates and locations by looking at the war diaries of the 1st Battalion of the Canadian Railway Troop. War diaries are the daily accounts of First World War units.

Colour photograph showing an open sketchbook with a watercolour of a train with a German naval gun on a wagon. The gun is wildly patterned with a camouflage paint. Soldiers are standing around, looking at it and talking.

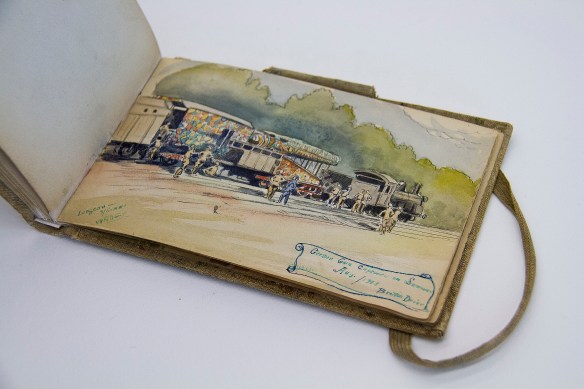

A sketchbook showing a German gun captured during the Second Battle of the Somme and dated August 1918 by Stark. (MIKAN 3029137)

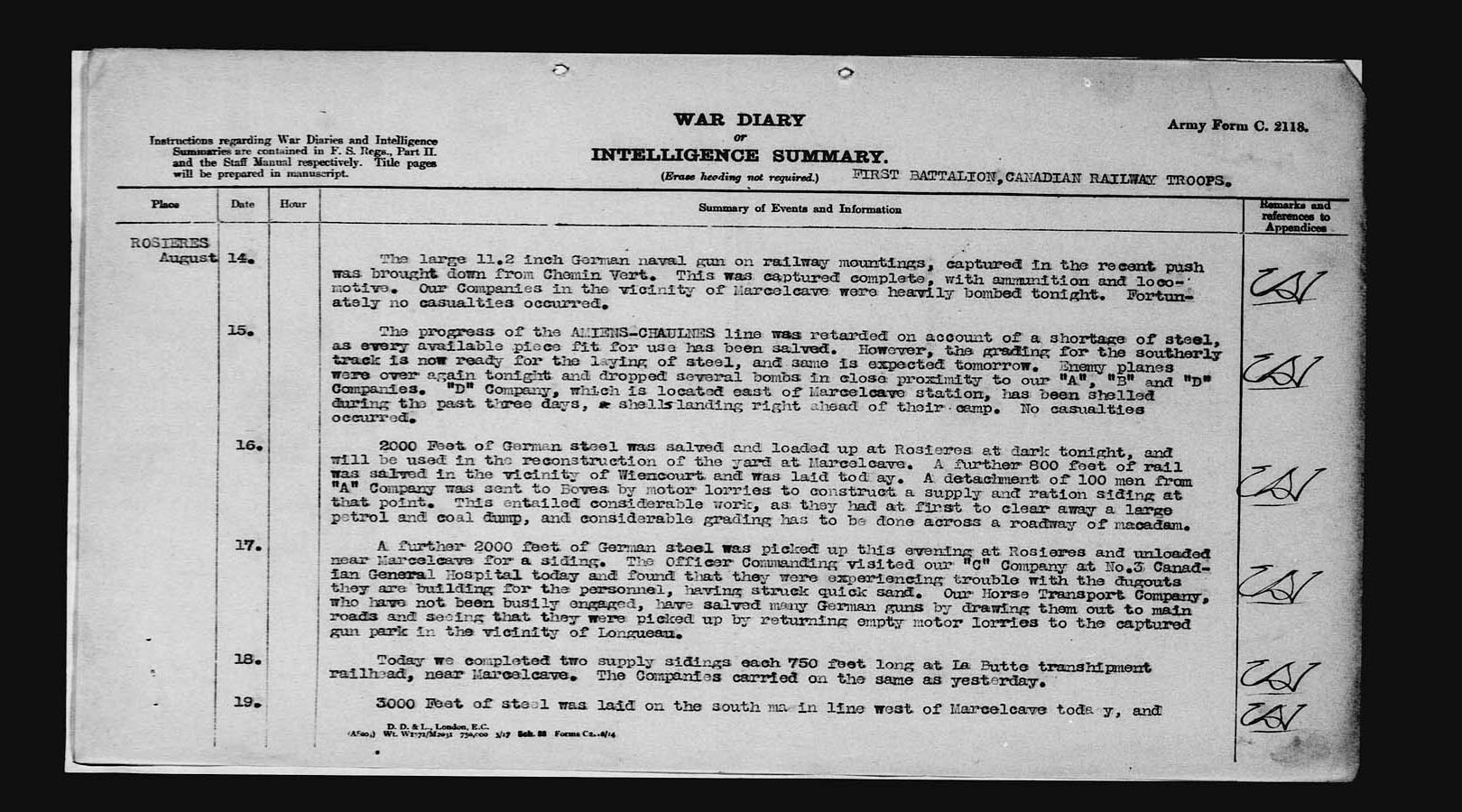

Black-and-white reproduction of a typewritten page for August 14, 1918 reading, “The large 11,2 inch German naval gun on railway mountings, captured in the recent push was brought down from Chemin Vert. This was captured complete, with ammunition and locomotive. […]

Entry in the war diary of the 1st Battalion of the Canadian Railway Troop showing the entry for the captured German naval gun on August 14, 1918.

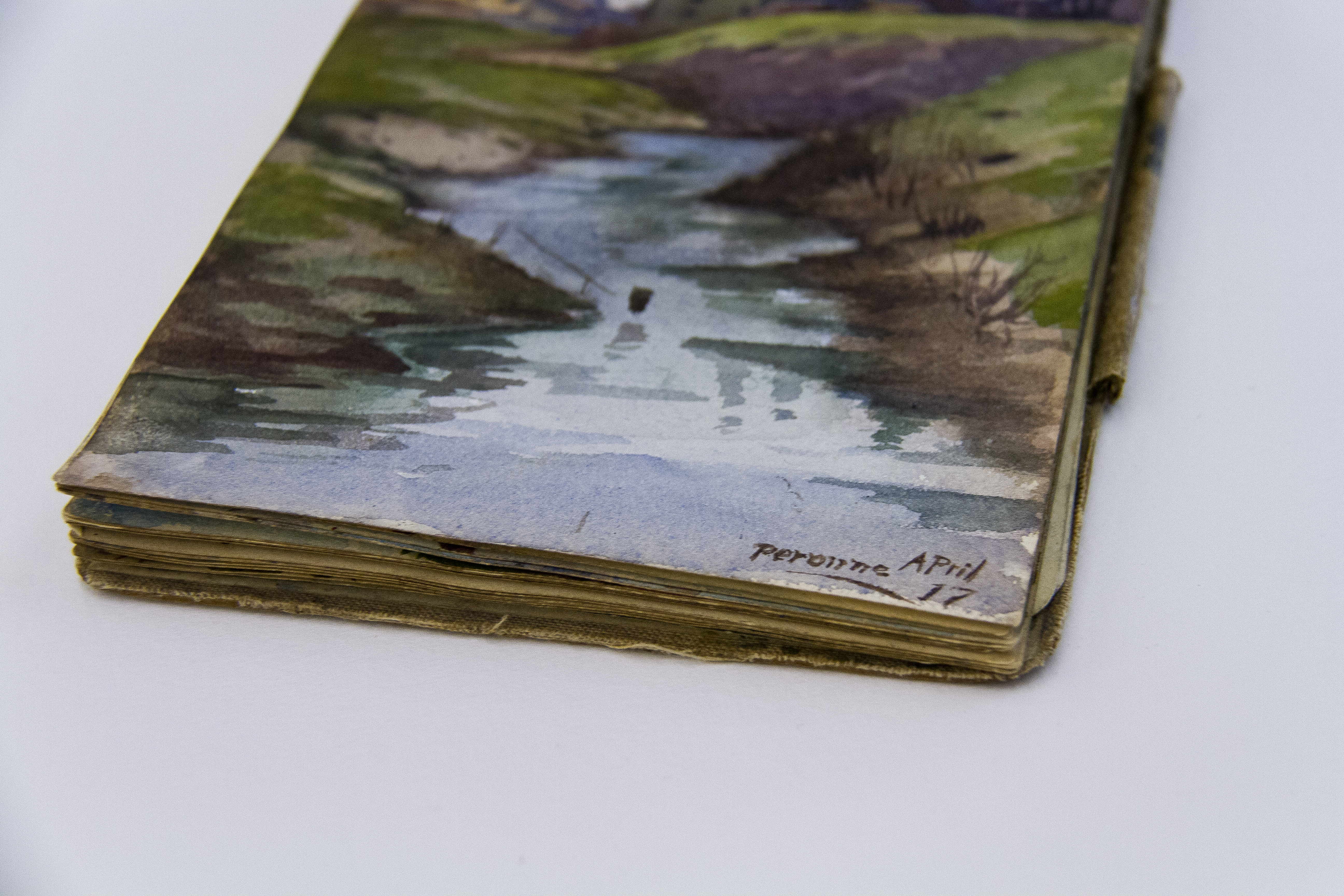

A colour photograph of a sketchbook at an angle showing a riverbank with the date and location in the lower right corner, “Perrone April 17.”

A view of Pérrone dated April 1917 found in sketchbook 7 (MIKAN 3028908).

A black-and-white reproduction of a handwritten page for April 15, 1917 reading: “[…] Battalion Headquarters moved to Peronne.”

The war diary of the 1st Battalion of the Canadian Railway Troop showing the first entry referencing the move of the battalion headquarters to Pérrone.

Visit Flickr to view more images of the conservation of books and visual material.

New additions to the Rare Books Collection: a census

Posted on by
Reply

After receiving the recent additions to the Rare Books Collection, the conservation team conducted a census or survey, to determine the state of the collection. The questions on the census were developed by Library and Archives Canada (LAC) conservators, in consultation with the rare book librarians. The conservation team then assessed the books individually and recorded the information.

The primary information recorded was on the condition of the collection, but also included information about the decoration and style of the books. Everything was documented regarding the initial condition of each book and any need for conservation—whether minor or major conservation was needed, and if there was any structural damage. The level of leather deterioration and the need for leather consolidation (a surface treatment to stop the deterioration of the leather) was also noted. The specific housing needs for each book was also assessed and noted—whether a wrap, wrap and tie or box was needed. Other details recorded were: cover decoration, the presence of marbled paper and bookplates, and any interesting inscriptions, missing volumes, etc.

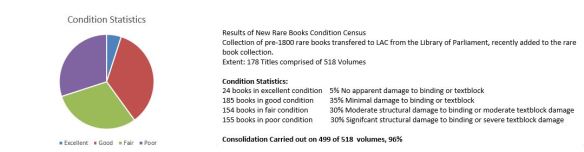

Pie chart showing the portions of the new collection in conditions ranging from poor to excellent.

Figure 1. The results of the new rare books condition census.

After the completion of the census, leather consolidation was carried out on 499 of the 518 books. Following these treatments approximately 8% of the collection was upgraded from fair to good condition. The number of books in fair condition decreased from 38% to 30% and the number of books in good condition increased from 27% to 35%. Rehousing was only needed for 15% of the collection and has been completed.

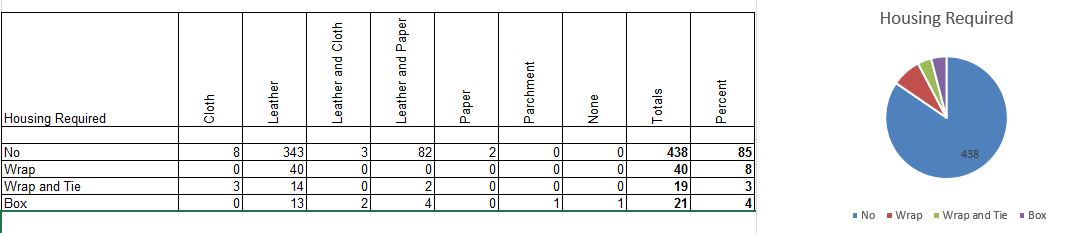

A table and pie chart showing the housing types required for the collection. The vast majority do not require any special housing, while some require wrap, wrap and tie, or boxes.

Figure 2. How much of the collection required rehousing.

Now that the census has been completed, the team has written a report that summarizes and presents all the results in easy-to-read graphs and charts. The report will be an invaluable tool for conservators, and will help plan future conservation projects as well as serve as a research tool for librarians and archivists.

Stabilizing the new books added to the Rare Book Collection

Posted on by
Reply

A collection of pre-1800 books were recently transferred to Library and Archives Canada’s Rare Books Collection. A census of the collection revealed that the majority of the books had various levels of leather deterioration. In some cases, the leather was cracked and flaking, and in other, more extreme cases, the leather was powdering and crumbling. This is an inherent and common issue seen in manufactured skins from this period. Leather deterioration takes place by two processes: Reaction of tannins used in leather manufacture to environmental pollutants (hydrolysis) and exposure of leather to light, heat and oxygen (oxidation). Both hydrolysis and oxidation result in the gradual disintegration of the leather fibre network and weaken its structural integrity. The by-product of leather disintegration is an acidic powder, often orange or red in colour. Not only does this deterioration cause an immediate threat to the individual book structure, but it also threatens the rest of the collection through the contamination of leather dust and particulate. In many cases, the leather leaves visible residue on surfaces and surrounding books. For these reasons, the conservators at Library and Archives Canada (LAC) developed and carried out a remedial treatment to stabilize the leather.

A colour photograph showing several books on a table. The book in the foreground has extremely deteriorated leather and the spine has separated from the front cover.

Deteriorated leather: The first step in the process was to assess the level of deterioration and carry out an initial surface cleaning of the books to remove as much leather dust as possible. This was carried out in the rare books vault, on all 500 books, using a gentle vacuum and small brush.

The most effective method of stabilizing deteriorated leather is through the use of a surface consolidant. A consolidant is a solution which is applied directly to the leather to seal the surface. Although it can’t stop or reverse the chemical instability in degraded leather, it creates a barrier that protects the leather from airborne pollutants and reduces the flaking and powdering. Handling affected leather books after surface consolidation is a much cleaner experience as well.

Testing

A series of tests were performed to determine the sensitivity of the leather to water and solvents. Based on these findings, we were able to reach a conclusion on the most suitable consolidant recipe to use.

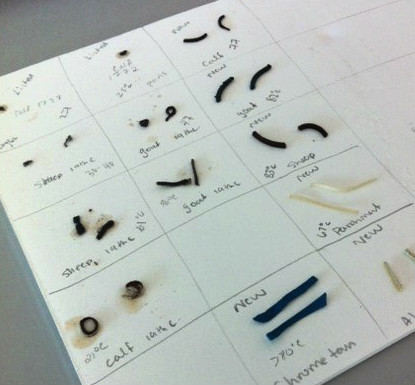

Colour photograph showing a piece of paper that has been marked out into squares with leather samples in each square. Each square shows the pre- and post-shrink test samples.

The testing carried out was called Shrink Temperature Test, where small samples of leather removed from the books were heated in water until a reaction occurred. The lower the reaction temperature the less stable the leather. The tests concluded that some leathers were quite unstable and that they could be easily damaged by the application of consolidants containing water and solvents.

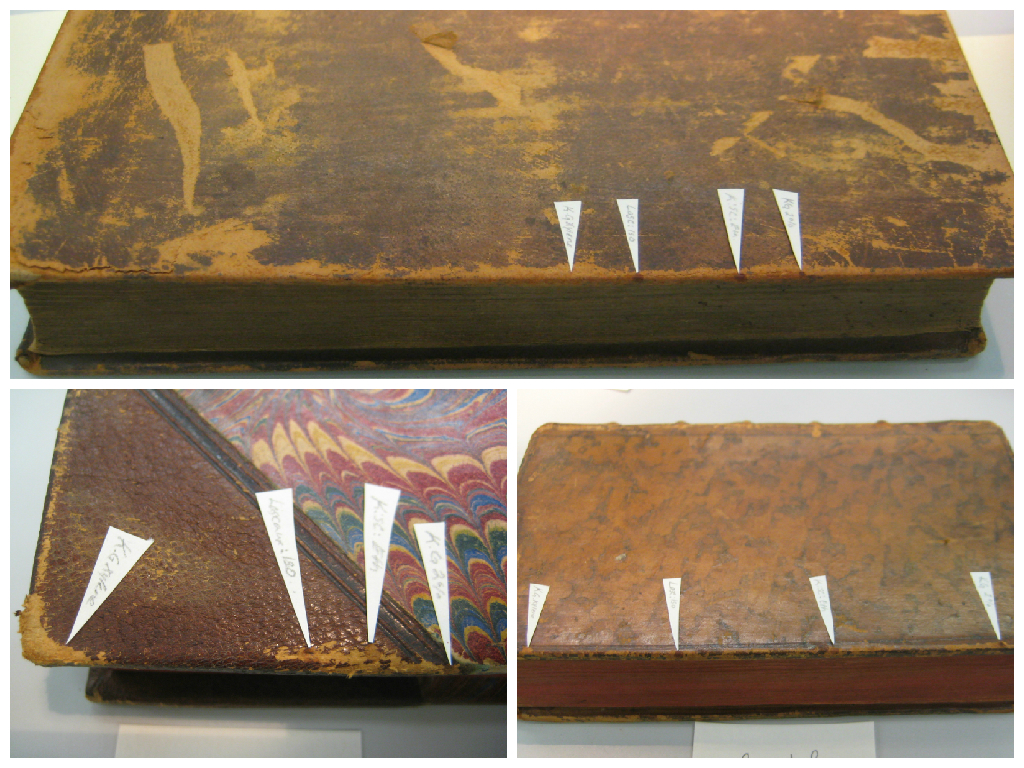

A collage of three colour photographs each showing a book with little white flags on it. The flags are located in the areas that were spot tested with the consolidants.

Spot testing: Four consolidant recipes were made up and tested on three volumes representing the identified species of leather found in the pre-1800 books, that of goat, sheep, and calf. The test relied on visual examination to determine the likelihood of discolouration by staining or residue deposit by the various surface consolidants.

The tests conclusively revealed that one particular consolidant exhibited no visible signs of staining or residue on the leather; Hydroxypropylcellulose dissolved in one solvent, then diluted in another. It was decided to use this recipe to treat the collection.

A colour photograph showing a woman holding a book in her gloved hands applying the consolidant with a fine brush under a fume hood.

Applying the consolidant under a fume hood.

The consolidant was applied to localized areas using a small brush. The treatment was carried out in a fume hood, due to the solvents used in the consolidant recipe. The books were then left to off-gas for 24 hours in the fume hood before being returned to permanent storage.

Now that the leather surface of the book has been stabilized, we can determine, with the help of the census information, what other, if any, treatments are necessary to make these books more resilient and available for future generations to access.

The William Redver Stark sketchbooks: impressions and paper

Posted on by
Reply

In this part of the sketchbook examination, we are exploring two additional facets of page mapping. The first part will look at impressions left from the artist’s instruments on the drawing paper; the second will examine the paper and the bookbinding techniques in the sketchbooks.

Tool impressions

When an artist is drawing or sketching, his or her tools frequently leave deep impressions on the pages. These are great visual indicators that help to reposition out-of-order pages. The indentations on the paper surface appear as a repetitive pattern of a mark from one page to the next.

Colour photograph showing a sketchbook that has some deeply indented impressions on one of the pages.

Artist’s pencil impression; view from the verso of the drawing.

Other examples of impressions left on a paper surface are the binding materials used by the bookbinder. For example, after a text block is sewn, the bookbinder will apply an adhesive on the spine. He or she may apply too much adhesive, which then oozes through some of the sewing holes, forming a drop of glue inside the central folio. Upon drying and hardening, the drop can make an impression onto the adjacent sheet of paper.

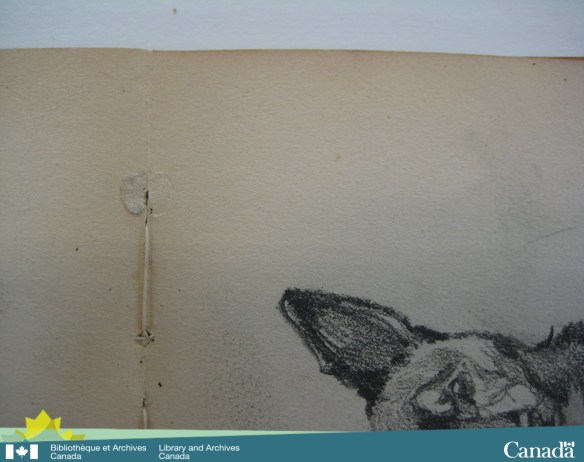

Colour photograph showing the inside of a folio; the glue drop is clearly visible with the corresponding impression on the other page.

Glue residue in the binding structure that overflowed into the central folio leaving a mirror impression.

The sewing tapes and threads used in a binding can also leave impressions on the pages. The sewing tapes are glued underneath the paper of the inside covers. They often leave a repeating mirror impression of the tape, which helps determine the order of pages near the front or the back of a sketchbook. The sewing thread impressions found on detached pages also provide a good clue as to which sheets of paper are located in the centre folio of a section.

Colour photograph showing the detached spine of a sketchbook. The impression of the sewing tape is clearly visible on both the board paper and on the first page of the folio.

Detail of the sewing tape located under the board paper and the impression left on the adjacent page.

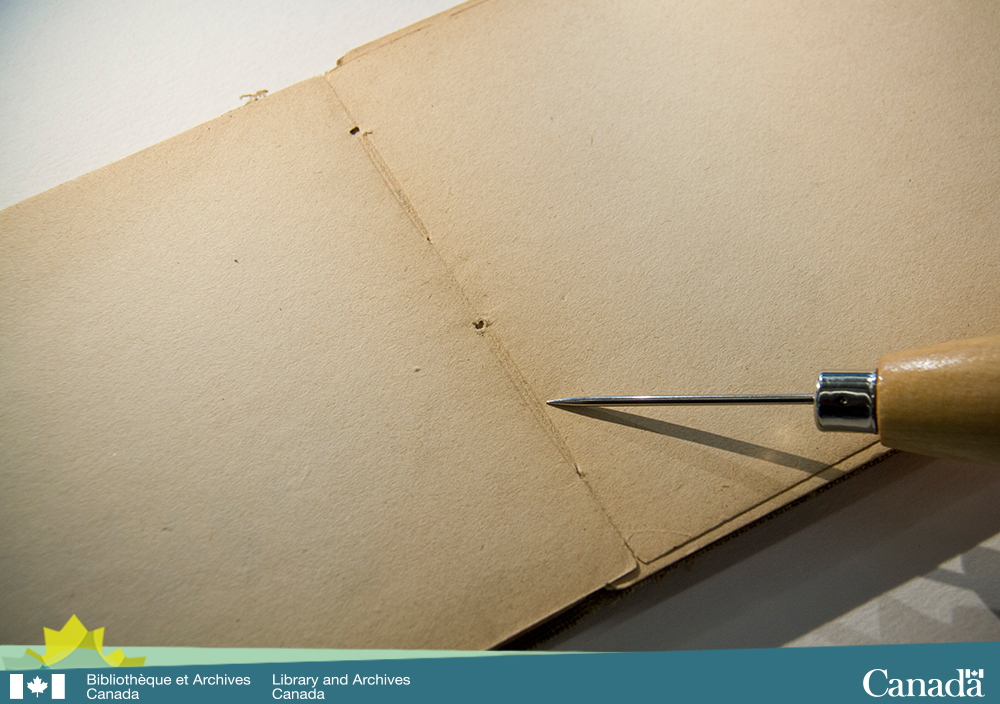

Colour photograph showing an open sketchbook lying flat on a table. An awl points to the sewing thread marks on the paper.

Visible transfer of the sewing thread mark onto the paper.

Page and paper analysis

A number of the Stark sketchbooks have soft, gradual convex and concave warping that extends across or along the edges of pages. This cockling happens when sketchbooks are in a high humidity environment. Here, the humidity causes a permanent distortion of the pages.

One of the sketchbooks was distorted along the edges of three sections. The undulating edges matched each other perfectly only when the pages were placed in the correct position. This gave us the verification needed for proper orientation and sequencing of the pages.

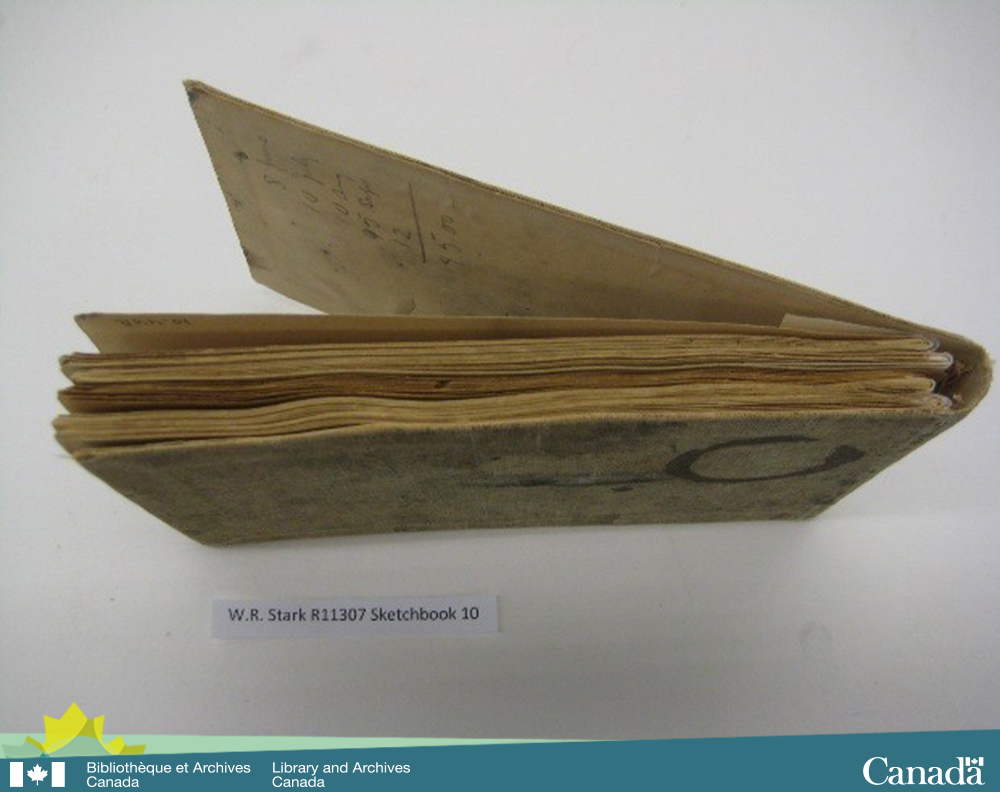

Colour photograph showing a sketchbook from the top; the bottom sections are clearly warped and distorted while the top ones are perfectly flat.

An example of cockling and undulation from the first to the third sections of the sketchbook and none in the last two sections.

Binding techniques

Paper can also reveal other clues to determine page order. One way to confirm page order is to look closely at the binding techniques, which leave very useful evidence.

When pages are first folded into sections, groups of three to eight sheets of paper are folded together. The folio on the inside of the section naturally has a sharper fold than each subsequent folio in the section. The folds become less sharp and incrementally wider as the number of folios per section increases. An examination of the fold of each half or complete folio can help determine the likely location within the sections: first, or centre of folio, second, third, fourth position, etc. An exact measurement of each page confirms the position as well.

Rounding and backing is another binding technique that provides an indication of page sequence. The technique is usually accomplished by using a hammer to shape a previously sewn and glued spine. Rounding and backing results in a slight bend of the sections close to the spine; the sections near the front of the book bend slightly toward the front; the central sections are fairly straight; and the sections near the back of the book bend slightly toward the back. Rounding and backing was clearly visible in the Stark sketchbooks and thus a helpful indication of the sequence of sections and pages.

Colour photograph showing an angled view of a sketchbook that highlights the curving produced by the bookbinding technique.

View of the slight bend of the section near the front of the text block showing the effects of the binding technique that can help determine the right page order.

In our next instalment on page mapping, we will look at the dates that are scattered throughout the sketchbooks and how they match up with other sources of information at Library and Archives Canada.

Visit our Flickr or Facebook albums to view more images of the conservation examination.

The Rare Book Collection: recent additions

Posted on by
2

A collection of 500 pre-1800 books were recently relocated to a permanent location in Library and Archives Canada’s rare books vault. The vault is equipped with optimal environmental conditions to ensure this special collection is properly preserved for generations to come. Prior to being transferred to Library and Archives Canada, the books were owned by the Library of Parliament. Most of this collection consists of books published in England or France, and many are multi-volume sets. The subject matter ranges from geography and history to theatre and essays.



Colour photograph showing rows of books on a shelf. All the books are flagged with a slip of paper with a call number on it.

The permanent location in the rare books vault.

About the Collection

The majority of the books are 18th-century hand bindings bound in full or partial leather. The collection also comprises some books made of paper, cloth or parchment. The books are decorated with intricate gold titling and tooling and are often accented with unique and stunning marbled papers, commonly used as the endpapers.

Colour photograph of an open book showing a sumptuous marble paper used for the end paper.

Marble paper detail.

Colour photograph collage of four beaver-stamp images showing the different stamp styles on the books.

The Library of Parliament “beaver” stamp on the spine of many of the books. The style and intricate details of the beaver changes over the years, but the familiar trademark remains easily identifiable.

The condition of the books

Before being added to the Rare Book Collection, factors such as moisture, temperature, light and dust contributed to the deterioration of many of the books. Although some books are in excellent condition, with the binding structures and text blocks intact, many are damaged and show signs of damage. Some items have suffered from water and fire damage, or contain traces of a pest infestation, while others are weakened and damaged due to centuries of physical use.

Red rot and leather deterioration

A large percentage of the collection (approximately 90%) suffers from various levels of leather deterioration. In some extreme cases, the type of damage is referred to by conservators as red rot. The deterioration of leather is a common issue in leather from this period as the tannins used in the manufacturing process contain chemicals that, over time, and in the presence of oxygen, undergo a chemical change that breaks down the leather molecules. This causes the leather to weaken, flake and powder.

Colour photograph of a gloved hand holding a book with the telltale signs of red rot. The glove and sleeve are covered in a fine reddish-brown coloured dust.

An example of red rot—the term describes the red-coloured powder that appears on the surface of badly deteriorated leather.

Next steps for this collection

So much can be learned from this collection of historical and beautiful books. Check back with us for the next blog posts on the physical inventory of this collection , which includes a detailed inventory of the state of the collection, the levels of conservation treatment required, the material composition of the books, type of decorations, etc. Also have a look at the following post, detailing what steps will be taken to preserve this fine collection.

The William Redver Stark sketchbooks: stains and losses

Posted on by
Reply

In this next article on examining these sketchbooks closely, we are looking at paper stains and losses. In this context, a stain is a discoloration of the paper fibre, while a loss is when an area of the paper is physically detached or missing.

Envision W.R. Stark tucking a sketchbook in his army bag or coat pocket in all kinds of weather or situations. As Stark was not an official war artist, he likely sketched in his spare time or when he was on leave. Through his sketchbooks we can follow him on a visit to the London Zoo, a stroll in the countryside or along the seacoast. His images typically depict daily life, people and landscapes.

These sketchbooks show many signs of physical deterioration because of Stark’s handling and shuffling of them during his war service, as well as the intervening 75 years between the end of the war and their acquisition. As you can imagine, being out on the front in terrible living conditions, water damage would be an important factor. Water not only warps the paper, but it can also leave a tideline. This happens when a liquid deposits dissolved materials such as dust, colouring matter and the like at the edge of the liquid, leaving behind a discrete line when the paper dries that is often darker than the remainder of the stain.

Tidelines found on two or more sequential pages are one of the many visual indicators used to determine the original order of the sketchbook pages.

Colour photograph of the inner spine of a book showing the darker line of a water stain

Detail of a tideline water stain with a darker perimeter along the spine.

Some oily or greasy marks and ink drops are also noted along the edges of the pages. These marks are often seen in an offset pattern that repeats itself from one leaf to the next in a decreasing or increasing fashion. These are also great clues for repositioning out-of-order leaves within a sketchbook.

Colour photograph of one side of an open book with its pages fanned out and a pointing device showing the oily stain that is repeated along the edge of each page

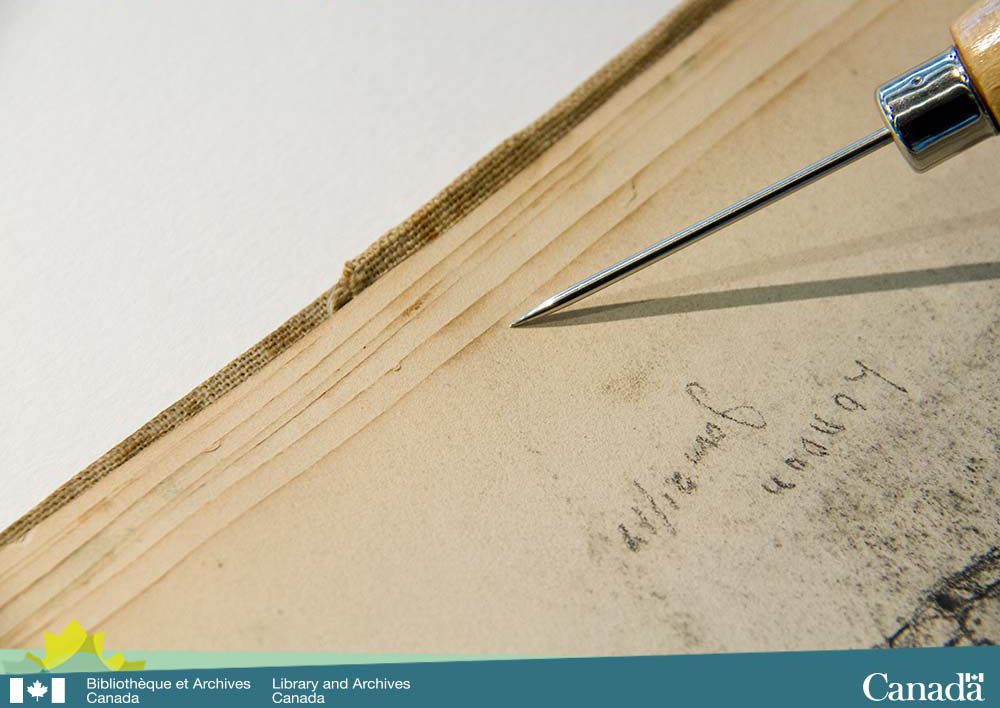

Oily stain found along the edges of multiple pages.

Colour photograph of a sketchbook taken from above showing the ink stains along the page edges

Ink stains showing the repeating pattern along the edges.

Other visual indicators that are helpful in this detective work are a repetitive pattern of paper loss along an edge. For example, several pages have been torn or indented in the same area.

Colour photograph of a sketchbook showing the repetitive, triangular-shaped area of paper that is missing from multiple pages.

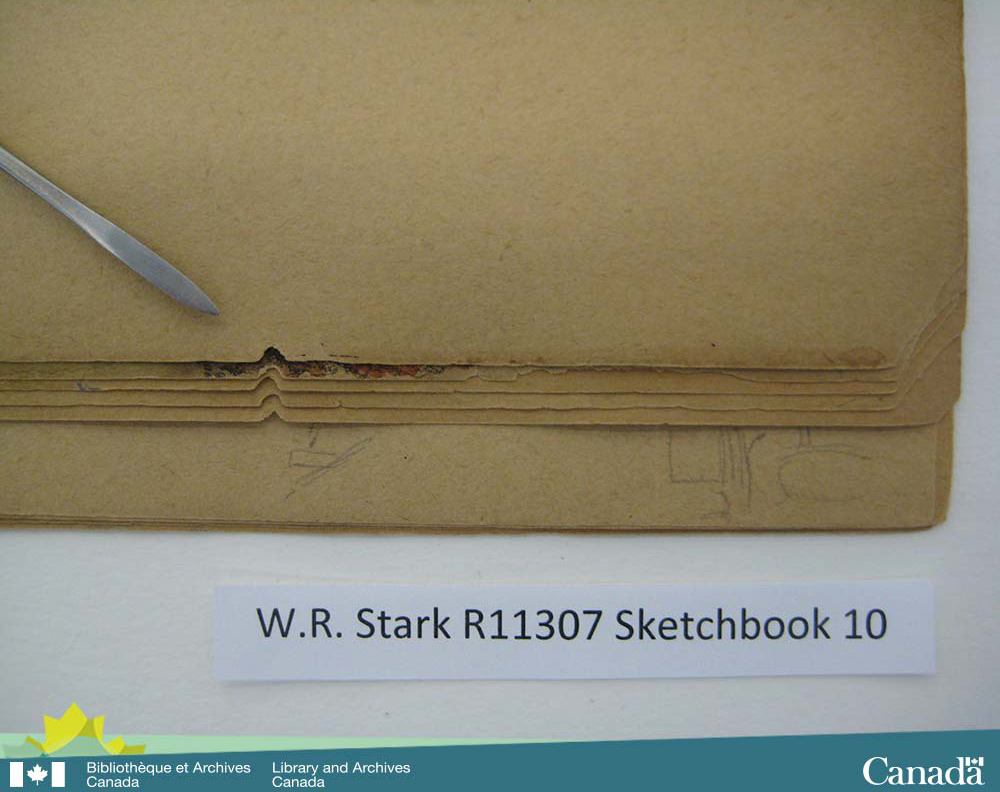

An example of a repetitive pattern of paper loss along the edges of the sketchbook pages.

Visit our Flickr album on the conservation of the sketchbooks to see more photographs of this detective work. You can also view the previous articles in the Conservation series on the blog, Facebook and Twitter.

Water in the stacks!

Posted on by
1

But it’s not what you’re thinking…

Recently, two copies of a publication in the Reserve (Rare Books) Collection were identified for rehousing. The piece is called Venise undersee.

When the objects were removed from their original silk fabric bag, it was discovered that they were made of metal and that they were corroding… yikes.

The items are part of Library and Archives Canada’s collection of artists’ books. A bronze representation of the globe, with braille text excerpts from a poem on the surface, they are about the size of a five-pin bowling ball. The globes were made in 1998 by Daniel Hogue in an edition of ten copies. Very nice pieces, but disconcerting to see the beginnings of corrosion on one, and quite a large spot on the other.

Colour photograph of a metal globe sitting on silk brocade. The patina of corrosion is clearly visible on the outside of the globe.

Hmm… corrosion. What’s happening here?

Our first thought was that after the construction of new containers, the items could be moved into a vault with a lower humidity setting at LAC’s Preservation Centre, watch for a while, and see if the corrosion continued.

But after checking the AMICUS record, it was discovered that changing the ambient humidity was not going to help… inside the bronze globes was water from the canals in Venice! Yes, give one of the globes a shake and you’ll hear water sloshing around.

You may be acquainted with the term “inherent vice,” and this is a perfect example. Something inherent, or part of the original, that can have a detrimental long-term effect on it. The effects of inherent vice can be slowed in some cases; for example, cooler storage conditions will slow acidic deterioration of paper. In this case however, without making a structural change to the object (that is, drilling a hole in it and draining the water), there is really nothing that can be done to halt the damage.

Just to make things interesting, the artist’s intent is an important consideration in making decisions about these objects. Is the corrosion damage what the artist intended? Will the artist be upset with what is happening to the works? To find out, the artist was contacted, and it was determined that leaving the water to do its thing was the preferred course of action. Just as the water is slowly eroding structures in Venice, so it will slowly erode these works.

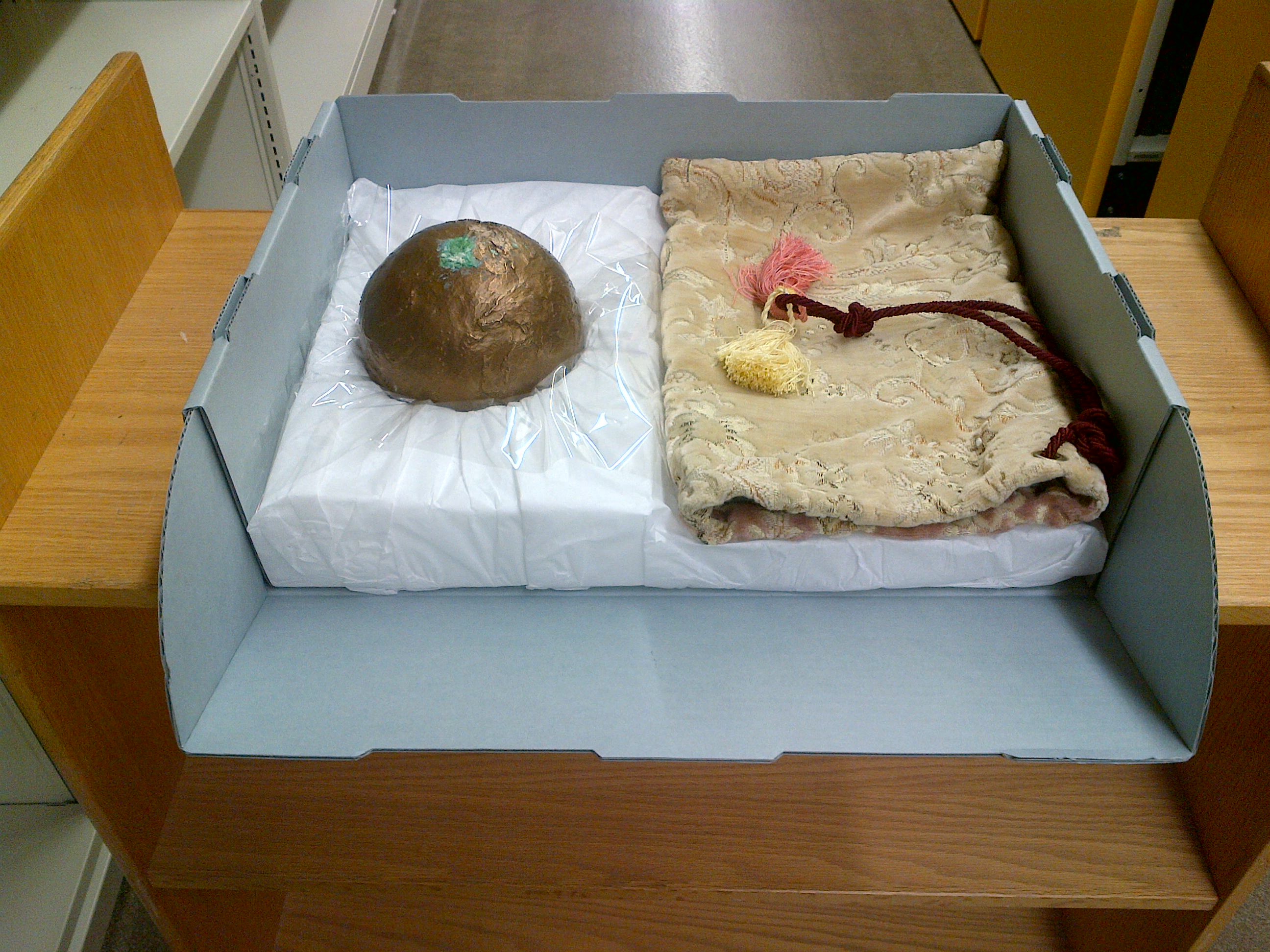

Colour photograph showing the bronze globe in a padded container with the silk brocade wrapping on the right. There is a layer of polyester film under the metal object to isolate any leaking water.

All ready to sit and let time do what it will—the item is rehoused.

And, because you’ll ask, the amount of water inside is not a concern in terms of a leak that could damage other items in the collection. The quantity of water is small, and would most likely be absorbed by the cardboard containers they are housed in.

We will continue to monitor the works to gauge how quickly the corrosion is proceeding, and make decisions about how to manage what will be left of the works in the future.

The William Redver Stark sketchbooks: page mapping

Posted on by
Reply

In the last article on William Redver Stark, we discovered that the 14 sketchbooks show signs of structural and physical damage. We also noted that all of the sketchbooks had some pages missing and five sketchbooks had numerous pages missing. It is impossible to determine if Stark removed the pages himself or whether they were removed by someone else at a later date. Nonetheless, removing pages resulted in a series of negative outcomes for the sketchbooks:

  • The remaining halves of the folio pages became loose in the text block
  • The loose pages were moved so that the original order and orientation were changed
  • The loose pages became damaged as their edges projected beyond the protective covers of the sketchbooks
  • The spines and sewing structures of the sketchbooks became unstable and deteriorated
Colour photograph of two pages; the left hand page shows where there’s a thin line of the watercolour on the far right edge that is the continuation of the image.

The sequence of two single pages was discovered by a thin line of watercolour pigments on the edge of the left page which matches the right page.

To begin to remedy these issues, the conservation team examined each sketchbook page by page to determine the original orientation and order of pages. This was accomplished by looking at all the little details—the media, watercolour, ink or graphite, the bindings and every instance of damage to the pages—and mapping them out very carefully. The team used various light sources, angling the light to view physical details of the paper, a microscope for magnifying every minute detail and the precise measurement of each page.

Colour photograph of an open sketchbook showing a watercolour on the left and the transferred media on the right

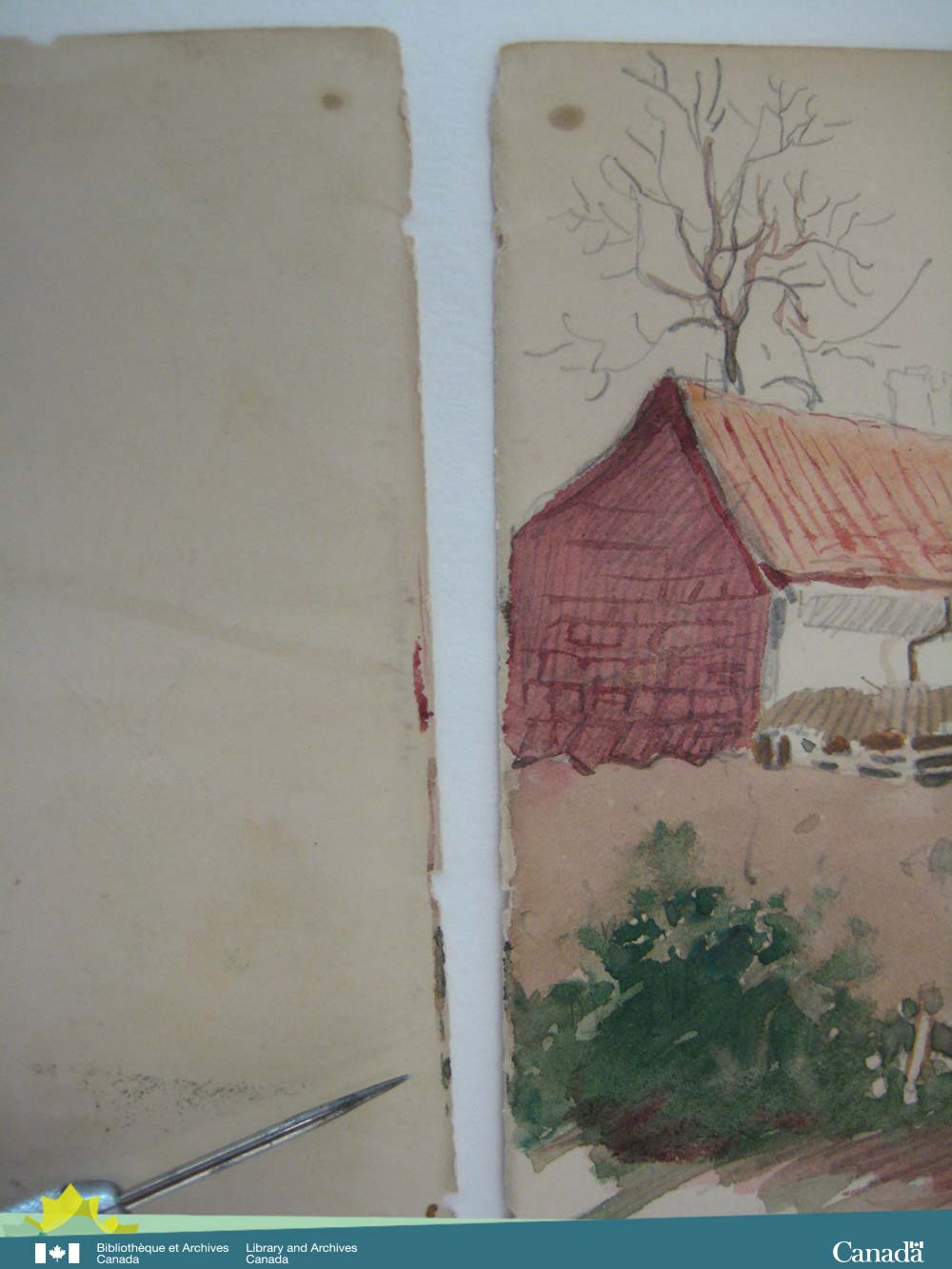

Media transfer—this page was turned when the watercolour was still wet, transferring green and brown watercolour onto the facing page. The loose page is returned to sequence.

The most conclusive evidence for the original order of the pages was:

  • Media transfer and media overlap
  • Paper damage such as repetitive stains, tears and losses
  • Impressions left in the paper from the artist’s drawing instruments and the binding materials
  • Dimensions and undulations in the paper and the location of the binding’s sewing holes
  • Artist’s notations with dates and locations
Colour photograph of an open sketchbook. On the left page is a sketch of a lion which has transferred to the right page.

The graphite lion on the left is mirrored in a media transfer onto the right page confirming the sequence of these two loose pages.

Evidence that matched up two or more pages in a certain sequence was documented and the long process of revising the page order began. Each detail was catalogued in a template which really helped to develop an understanding of the sequence for each sketchbook.

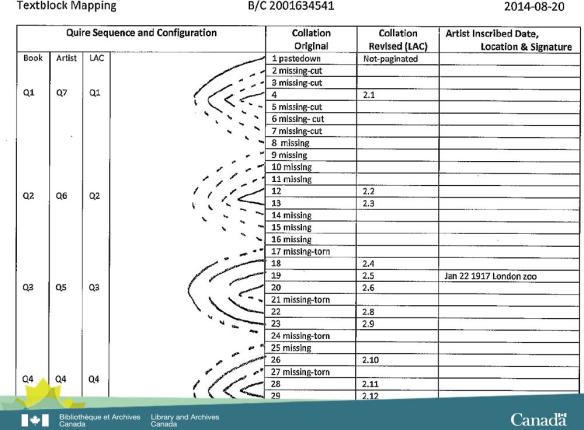

Black-and-white image showing a chart that is used to catalogue the existing and the original order of the sketchbook pages.

The page mapping template describes the contemporary sequence and the most likely original collation of the sketchbook. The documentation includes details of the number of pages per signature (grouping of sheets folded and stitched together); the number and location of missing, repositioned and blank pages; pagination; and paper type. Artist’s inscriptions are recorded as well.

The first page mapping chart shows examples of media transfer and overlap. Media overlap would have occurred when Stark was actually sketching or painting as the media was applied beyond the intended area or page. Media transfer happened after sketching or painting when the sketchbook was closed and pages were in direct contact with either wet or friable (crumbly) pigments. In both cases, media was visible on the preceding or subsequent pages and provided evidence of the original order.

In the next part, we continue to explore page mapping by looking at damaged pages.

All papers are not created equal

Posted on by
Reply

You may be aware that over the last 25 years, there has been a major effort to convert paper production from acidic products that deteriorate quickly to more stable paper. The movement largely came from the library community’s concerns about rapidly deteriorating paper in their collections. The result is that there are now no western producers making acidic papers anymore (other than newsprint), which is great news for libraries, archives and consumers.

Not all of these papers, however, can be guaranteed to truly last long-term (by that we mean over 300 years). Manufacturers can, and do, change the chemical composition of papers quite regularly, and as consumers and staff in a library/archive, it is good to know what is available and how to use it best.

So, let’s look at what’s around us. Our inexpensive everyday photocopy paper is not acidic when tested with a pH pen. This paper can be labeled “acid-free.”

Colour photograph of piece of paper with the words: “Purple = Ok!!” on it. This means that the paper is acid-free.

Test of the pH on everyday photocopy paper.

But it does not meet standards for longevity that we want for paper that will be incorporated with collections on a permanent basis. It’s perfectly fine for bookmarks and flags—items used temporarily.

For long-term quality, look for papers that are marked “permanent” or “archival,” with the infinity symbol set inside a circle.

An image of the acid-free paper symbol—the number eight lying on its side enclosed in a circle.

Infinity symbol designating a permanent or archival quality paper.

Permanent papers can be made with wood pulp (where the harmful acidic lignin is found), but the lignin is generally removed and no acidic additives are included during manufacture. Permanent papers are expected to last several hundred years under normal library or archival storage conditions. To be labeled “permanent” with the infinity symbol, the paper must meet either ISO 9706 or ANSI/NISO Z39.48-1992 standards.

Archival papers are made to an even higher standard and will last up to 1000 years. These papers are produced with cellulose fibres from plants other than wood and do not contain lignin (usually cotton or linen). Also, the standard for archival papers (ISO 11108) includes requirements for paper strength, which the standards for permanent papers do not include.

Papers labeled as either permanent or archival are recommended for long-term use with collections. It is probably best to choose archival papers when strength is a consideration, such as wrapping or enclosures.

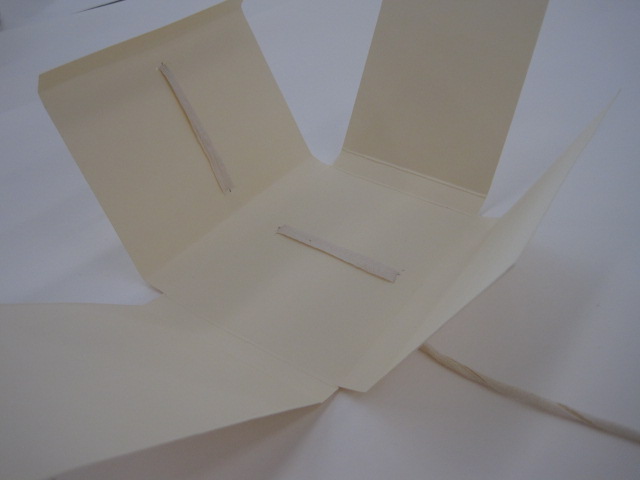

A colour photograph showing an enclosure to house textual documents.

An archival quality paper enclosure.

As a final note, it is important to remember that the storage environment for paper also has a huge impact on its longevity. For every five-degree reduction in temperature, it is estimated that the lifespan of paper doubles. Everybody put on a sweater!
